Global Cache

Global Cache iTach Flex WiFi

Name: Global Cache iTach Flex WiFi
Brand: Global Cache
SKU: FLEXWF
Price: 139.99 GBP
Availability: InStock

£139.99

VAT Included. Shipping calculated at checkout

SKU: FLEXWF

In stock

Quantity:

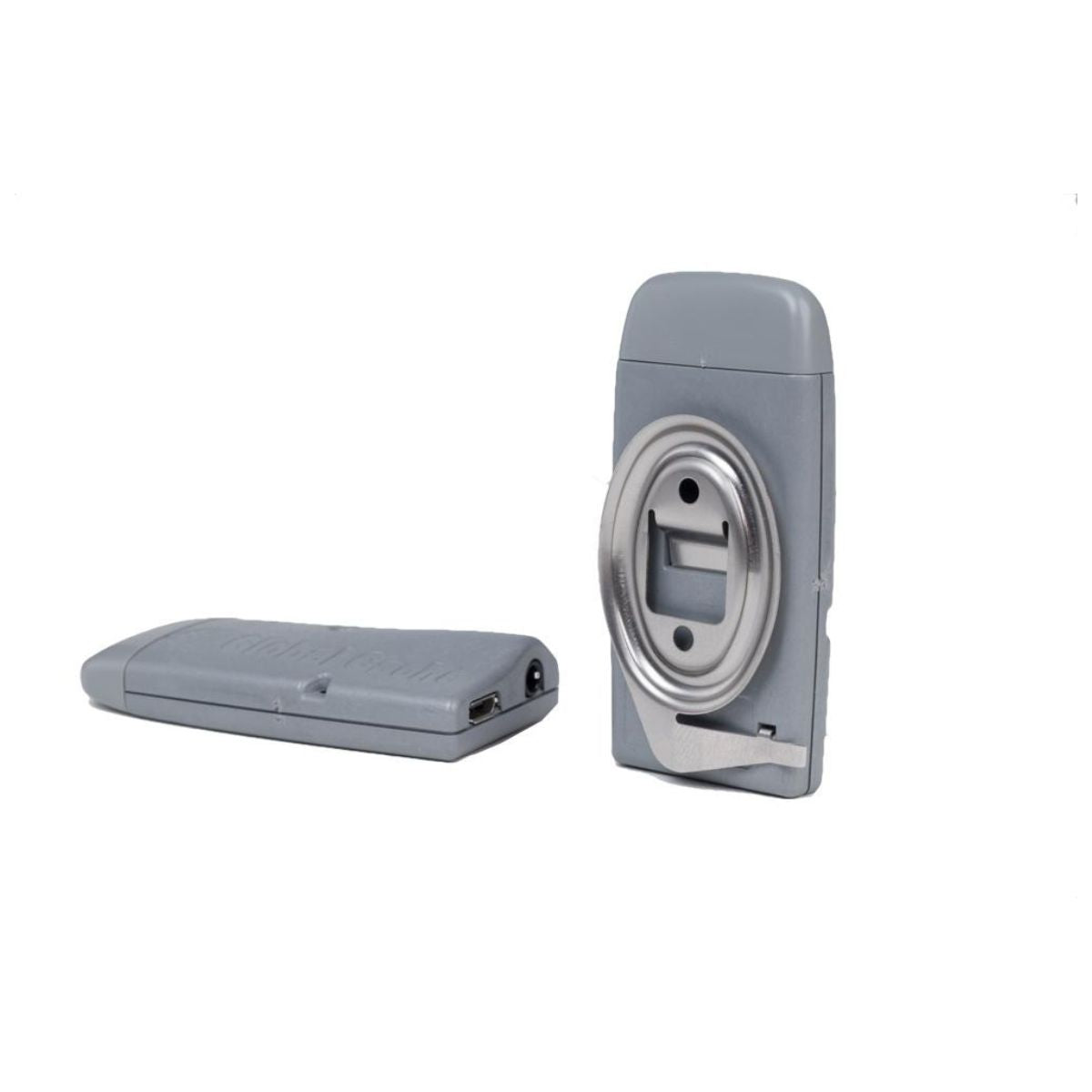

Global Cache's Wi-Fi iTach Flex is an industry first, smart end-point that Wi-Fi enables electrical devices instantly.

The Flex adds intelligence to the enabled device, allowing events and tasks to be triggered with simple web-based commands.

The Flex includes on-board memory allowing for stored web pages and files, and web page control.

You choose whether you want to control IR or Serial/RS232 devices, then simply connect the Global Cache IR suite of cables or the RS232 Serial Cable into the 3.5 mono jack on the Flex.

FEATURES

WPS functionality to quickly connect to the Wi-Fi network
Automatically determines the Baud rate
Astronomical clock to trigger events to occur
4MBs of on-board storage
Footprint the size of a pack of chewing gum
Allows up to 8 simultaneous connections to any smart device
Free use of the Global Cache IR Cloud Database

Power Input: -5V DC@250mA (90 to 230V wall power adapter included International plugs available -USB micro adapter cable draws power from USB port (included) -802.3af compliant Power over Ethernet (PoE) model available
Setup & Configuration: Integrated web server for easy configuration and HTTP control Wireless
-Adhoc network for peer-to-peer setup
-WPS (WiFi Protected Setup) Pushbutton connection to the network
iHelp Setup Utility: Downloadable iHelp software simplifies network discovery and setup
IR Learning From 20 to 200 KHz
Downloadable iLearn software: allows for the capture and playback of IR commands for control uses.
Network Connection: DHCP and static IP
Wired TCP/IP -RJ45 standard Ethernet connector-100/10 Mbits Ethernet protocol
Wireless/WiFi
-Infrastructure and adhoc network types
-WiFi 802.11g/b with on-board antenna
-WPA/WPA2 (TKIP, AES & Mixed)
-WEP 64 bit and 128 bit
-WPS
LED Indicators: Power and connectors to indicate activity and status.
Flex Link Port: 4 Conductor connection (TRRS: tip, ring, ring, sleeve). Allows for versatility through the use of our Flex Link cables.
Flex Link Cables: Supports IR Out, IR Blaster, IR Tri-port, Serial (RS232/485), Relay and Sensor.
Serial: - RS232, RS485, and RS232 Mini Jack: See Flex Link Serial Cable Spec Sheet.
Relay/Sensor: See Flex Link Relay & Sensor Cable Spec Sheet.
IR Output: From 20 to 500 KHz 3.5mm connector
Supports
-IR Emitter, IR Blaster, 3 Emitter, 2 Emitter, 1 Blaster / -IR Tri-port (emitter-emitter-emitter or emitter-emitter-blaster) / -GC-CGX - For Xantech compatibility.
Control APIs: TCP -ASCII textual commands compatible with iTach and GC-100 protocol -Comma delimited, carriage return terminated -Published on globalcache.com.
HTTP -Web-based control using HTTP commands with JSON payload data.
Mounting Dock: Allows for simple installation in any location. Screw down the mounting dock and Flex units can be clicked in and out as needed.
Dimensions: LxWxH Wired / 2.58”x1.22”x0.82” / LxWxH WiFi / 2.55”x1.22”x0.48”.
Certifications: FCC (Part 15, Class B), C-tick, RoHs compliant.
